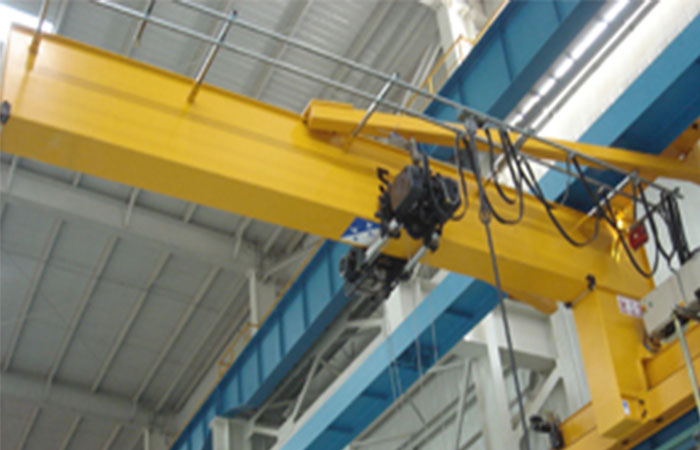

BB Wall-Travelling Jib Crane travelling rail is fixed on concrete post, move in lenthways.
The electric travelling off the arm and lifting object.
This crane expands the work scope, make full use of the workshop space effectively.
BB Wall-Travelling Jib Crane Features
- Light compact structure, few demand to architecture.
- Whole structure light, conform to the state standards
- The installation uses high strength bolt connection
- Novel structure, reasonable and simple
- Convenient in operation, and turn to flexible
- Light weight, moving flexible
BB Wall-Travelling Jib Crane Operation
Handle or remote control operation on ground
Double block button
Protection class IP65
Long sevice life of 500 thousand time
| Lifting height | h(m) | 6 | 9 | 12 |
|---|---|---|---|---|
| Maximum cantilever | R1(m) | 5 | 6 | 9 |
| Minimum cantilever | R2(m) | 1.2 | 1.2 | 1.2 |
| Lifting speed | m/min | 8 | 8 | 8 |
| Trolley speed | m/min | 20 | 20 | 20 |
| Travelling speed | m/min | 30 | 30 | 30 |
We welcome your customization on this wall traveling jib crane, also we could offer you pillar mounted jib crane and wall mounted jib crane.
Looking forward to receive your enquiry with the below details information:
1. Lifting capacity
2. Span ( rail centre to centre )
3. The required lifting height ( from hook to the ground )
4. Crane travelling length
5. What will be lifted by the crane
6. The crane and hoist movement speed (m/min)
7. The rail length and the height.
8. Single speed or double speed for lifting and travelling?
9. Driver cabine control or pendant control?
10. How many hours work per day?
11. Power source: 380V, 50Hz, 3phase or others?
